Modi 2

Complete, Affordable DAC Family

AC Adapter


Modi 2 Backordered to 9-4






Modi is a complete family of affordable DACs for virtually any need. Whether you want better sound from your computer, your tablet, your CD player, or many other sources, the Modi family has a model that will fit your needs.

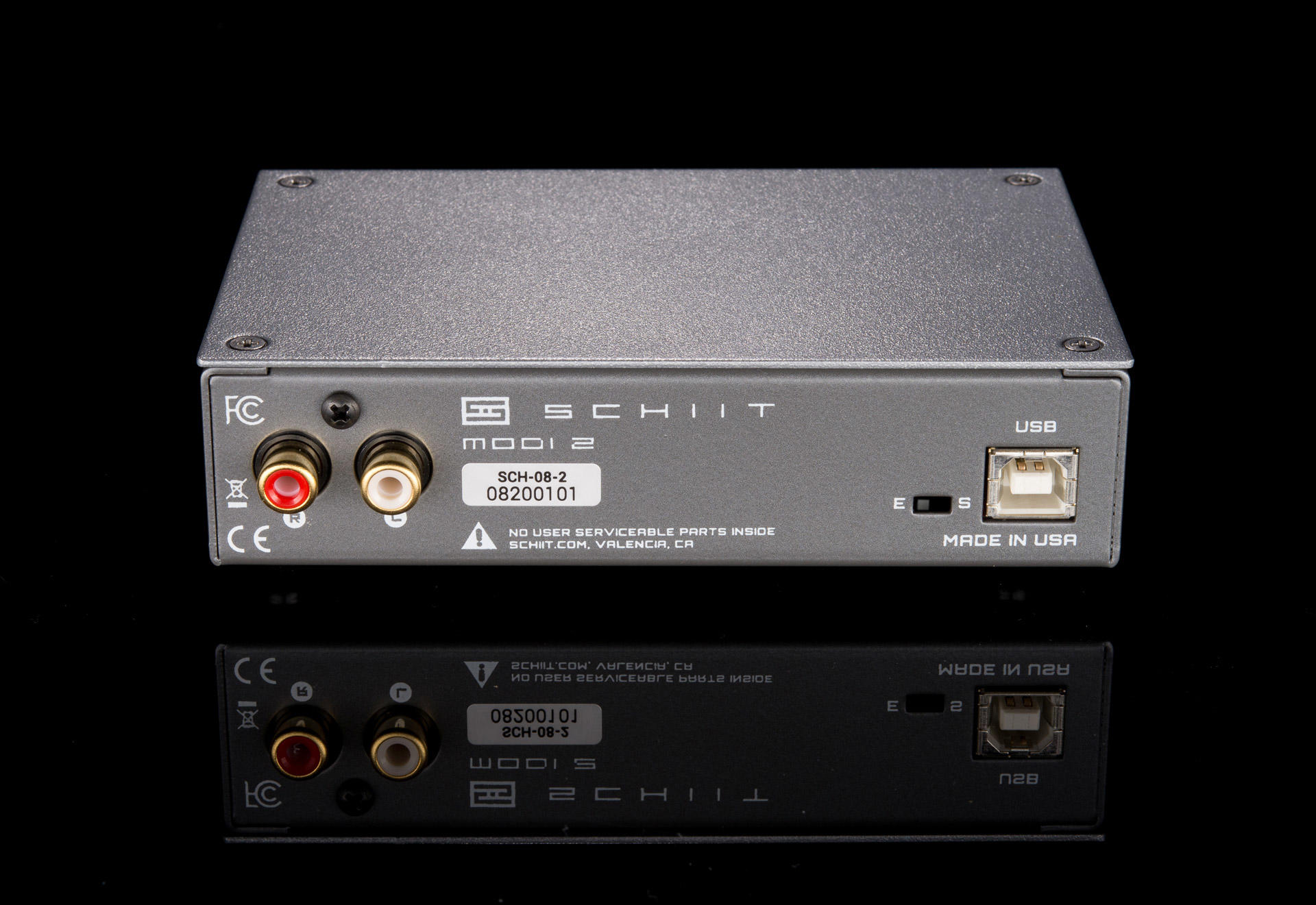

Modi 2: Improve Any Computer’s Sound
Modi 2 plugs into virtually any computer—Windows, Mac, popular Linux distros, Intel Chromebooks, as well as iPhones and iPads. Just connect via USB and go with no drivers in Standard Mode, up to 24/96 output. Switch to Expert Mode (and install Windows drivers) for extended high-res capabilities to 24/192.

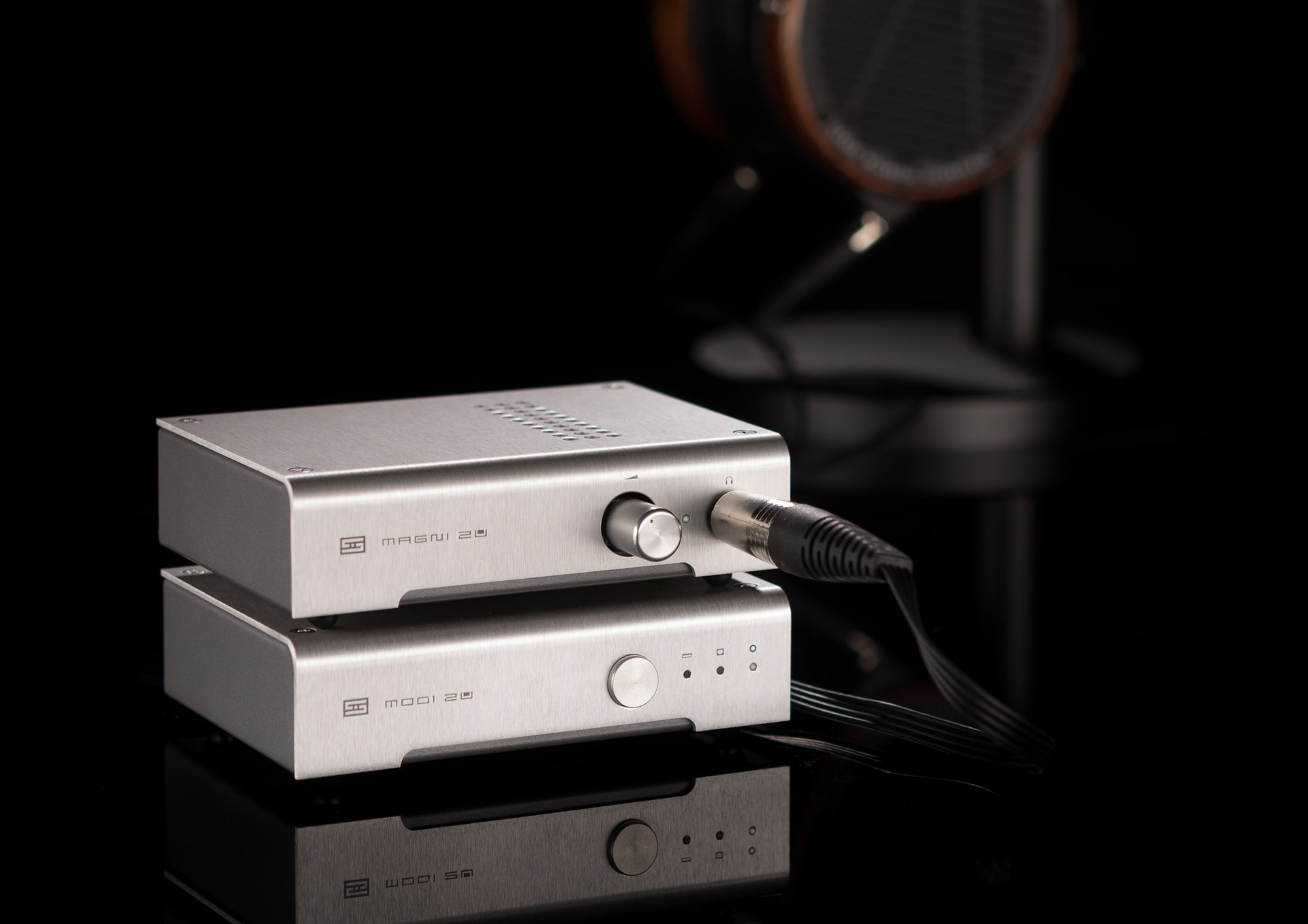

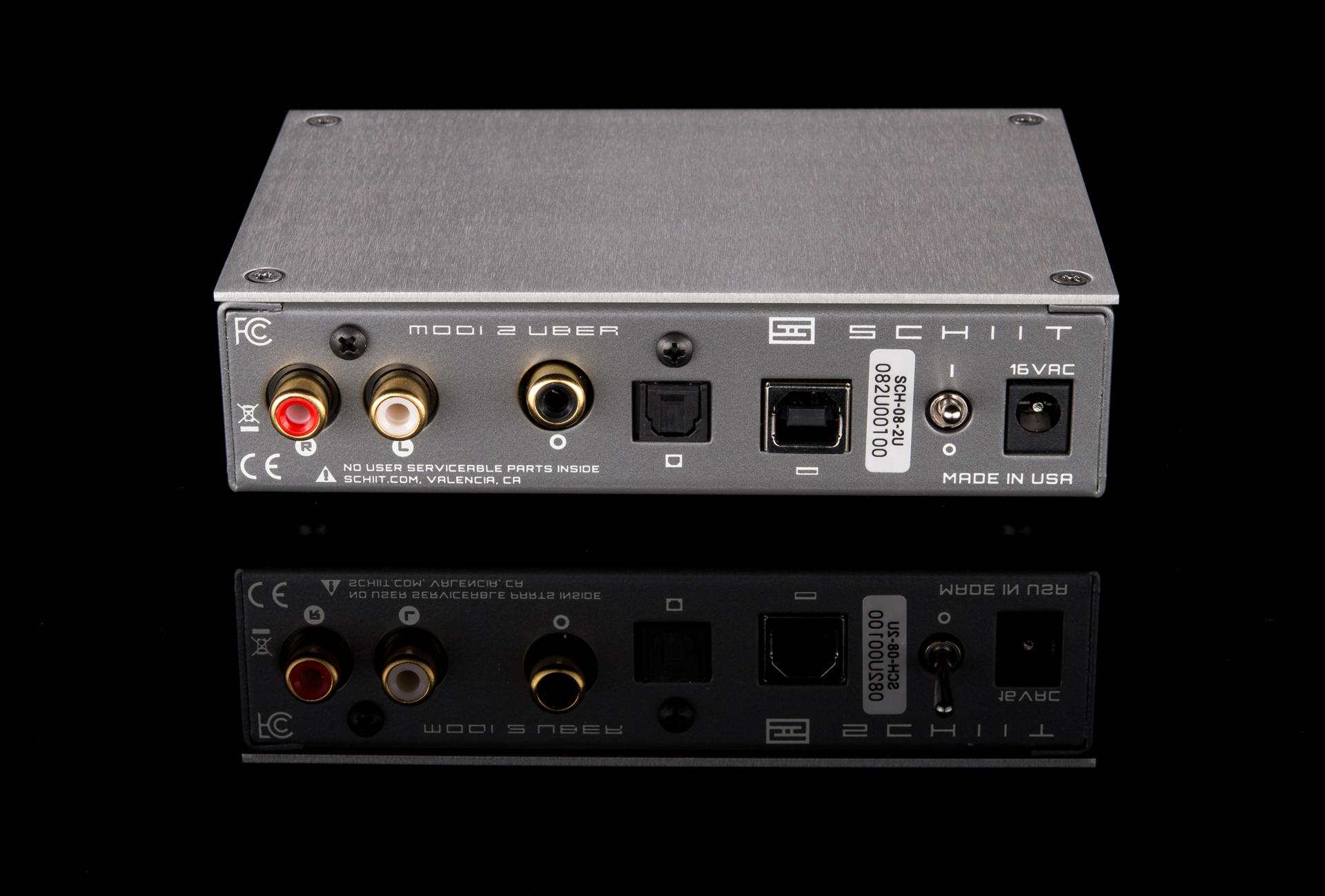

Modi 2 Uber: The Complete Mini-DAC
Honey, I shrunk the Bifrost! That’s the idea behind Modi 2 Uber. Like Bifrost, Modi 2 Uber offers USB, Toslink, and RCA inputs, each individually selectable via a front-panel button. It also has a more sophisticated analog section, with DC-coupled output. And, it’s ready for all sample rates, from 16/44.1 to 24/192.

Modi Multibit: Unique Multibit Architecture and Digital Filter
Modi Multibit is the most affordable multibit DAC with a modern architecture—from any manufacturer, from any country in the world. Featuring Schiit’s unique closed-form digital filter, and using the same Analog Devices AD5547 multibit DAC as Bifrost, Modi Multibit smashes the high-price barrier in multibit DACs.

Need Volume Control? No Problem.
If you’re using headphones, just add a Magni or Vali for adjustable volume via its preamp outputs. No headphones? Just add a SYS Passive Preamp for analog volume control.

Made in USA
By “made in USA,” we mean made in USA. The vast majority of the total production cost of Modi—chassis, boards, assembly, etc—goes to US companies. Our board house is 20 minutes away from our office in Newhall. Our chassis guys are just over the hill in the Valley.

2-Year Warranty and 15-Day Return
Modi is covered by a limited warranty that covers parts and labor for two years. That’s 2x the warranty of most of the products in this price range. And, if you don’t like your Modi, you can still send it back for a refund, minus 15% restocking fee, within 15 days of receiving your DAC.


Modi 2: USB
Modi 2 Uber: USB, Toslink SPDIF, Coaxial SPDIF
Modi Multibit: USB, Toslink SPDIF, Coaxial SPDIF

Sample Rates and Bit Depths:

Modi 2: 16/44.1 to 24/96, including 24/88.2, without Windows drivers, or up to 24/192 with Windows drivers (or using a Mac or Linux machine)
Modi 2 Uber: 16/44.1 to 24/192 via USB. 16/44.1 to 24/192 via Toslink* and Coax.
Modi 2 Multibit: 16/44.1 to 24/192 via USB. 16/44.1 to 24/192 via Toslink* and Coax, with 24/176 and 24/192 being NOS (non-oversampled)

*Note: many optical transmitters cannot output 24/176 and 24/192 reliably

Input Receiver:

USB: C-Media CM6631A

D/A Conversion IC:

Modi 2 and Modi 2 Uber: AKM AK4490
Modi Multibit: Analog Devices AD5547

Analog Summing, Active Filtering:

Modi 2 and Modi 2 Uber: Based on AD8616 with precision thin-film resistors and film capacitors
Modi Multibit: Based on AD8512 with precision thin-film resistors, DC-coupled with DC servo

Output: RCA (single-ended)

Output Impedance: 75 ohms

Frequency Response: 20Hz-20KHz, +/-0.1dB

Maximum Output:

Modi 2 and Modi 2 Uber: 1.5V RMS
Modi Multibit: 2.0V RMS


Modi2 and Modi 2 Uber: <0.002%, 20Hz-20KHz, at max output
Modi Multibit: <0.006%, 20Hz-20KHz, at max output


Modi 2 and Modi 2 Uber: <0.003%, CCIR
Modi Multibit: <0.007%, 20Hz-20KHz, CCIR

S/N: >104dB, referenced to 1.5VRMS, unweighted

Crosstalk: -80dB, 20-20kHz

Power Supply:

Modi 2: USB bus powered, 120mA draw
Modi 2 Uber and Modi Multibit: Included 16VAC wall-wart with 100% linear power supply

Size: 5 x 3.5 x 1.25”

Weight: 1 lb

Holy crap, that’s a lot of different Modis!
Yes, it is. We wanted to cover all the ground here, and make sure that anyone who wants better digital sound can get it—at a very affordable price. And we wanted to bring our own unique multibit architecture down to the lowest possible price point.

But there’s gotta be a catch, right?
Not really, other than our Modis are designed exclusively for direct sale. A dealer network would double the price.

So, you’re saying you plug this in and you’re ready to go?
Pretty much. In Standard Mode, Modi 2 can be used with virtually any Windows or Mac computer instantly recognizes Modi USB and requires no drivers, and many Linux distros that support USB Audio Standard 2.0 work just fine as well. It can also be used with iPhones, iPads, and Intel Chromebooks, as well as the Sony PS4. In Expert Mode, you’ll need to install drivers on Windows. Same goes for the Modi 2 Uber.

What’s the difference between Modi 2 and Modi 2 Uber?
Lots. Let’s break it down:

  • Inputs: Modi 2 only has USB, Modi 2 Uber has USB, optical, and coax.
  • Control: Modi 2 has no controls, Modi 2 Uber has an input selection switch.
  • Power Supply: Modi 2 is USB powered, Modi 2 Uber has a linear power supply and wall-wart.
  • Analog Section: Modi 2 is capacitor-coupled output, Modi 2 Uber has DC-coupled output with a servo.

How about the Modi Multibit?
Modi Multibit has exactly the same inputs, finish, and controls as Modi 2 Uber (and also a large, stylized “M” screened on the top that looks kinda like a space invader—and helps designate it as a Modi Multibit.) But it’s profoundly different from the Modi 2 Uber inside:

  • Architecture: Instead of a conventional delta-sigma architecture, the Modi Multibit uses our own, entirely new multibit architecture.
  • Digital Filter: Instead of using the digital filter embedded in the AK4490 DAC, the Modi Multibit features our own unique closed-form digital filter implemented on an Analog Devices SHARC DSP—the same filter used in the Bifrost Multibit.
  • D/A Converter: Again, instead of using a delta-sigma audio DAC, the Modi Multibit uses an Analog Devices AD5547 medical/military-grade D/A converter—the same D/A converter used in the Bifrost Multibit.

Bottom line, Modi Multibit is by far the most sophisticated DAC available anywhere near this price, and it is based on an entirely new architecture (rather than using NOS or soon-unavailable old-style audio multibit D/A converters.)

Sounds like you’re pretty proud of the Modi Multibit.
Not that that’s a question, but yes, we are. Only a little more than a year after the introduction of the Yggdrasil, you can now get a DAC that includes derivatives of its unique technology for only about 1/10 of the price. Has anyone else done that? Would anyone else do that? Are we insane? Only you can tell.

Well, I don’t believe Multibit is the way to go, I heard from an anonymous dude on the 'tubes that it's sucky.
Cool, then get a Modi 2 Uber and save $100. Or a Modi 2 if you’re only using USB and save $150. Everybody’s happy!

So what platforms does your USB input support?
Actually, the question should be “What platforms support your USB input?” since our USB input is 100% UAC2 compliant (that is, USB Audio Class 2, the accepted standard for USB audio transmission.) So, here you go:

  • Windows 7, 8, and 10. Windows 10 is highly recommended. It is usually plug and play with our DACs. Sometimes you have to install drivers, which are available at Windows XP, Vista, and Windows Server editions are all untested and are not recommended.
  • Mac OSX. From 10.7 on up, Macs have been plug and play with our DACs. Sometimes you’ll run into power management problems that will require you to turn off App Nap.
  • iOS. From iOS7 on up, iOS devices have been able to interface with our DACs using a USB Camera Connection Kit, Lightning to USB Camera Adapter, or Lightning to USB3 Camera Adapter. You may have to use a hub to avoid a “Draws too much power” error.
  • Android. Most Android devices that shipped with Android M or above will interface with our DACs using a USB OTG cable. Some may require separate player software, like USB Audio Player Pro.
  • Linux. Most Linux distros that support UAC2 natively will be plug and play with our DACs. Please note that we cannot provide detailed technical support for Linux.

I want a combined DAC/amp! Why didn’t you put an amp in here?
We did. They’re just in different chassis and costs another $99-169. They’re called “Magni 3“ and “Vali 2.” The latter of which even gives you a tube! Now you have options, instead of a single boring, soon-to-be-obsolete combo box.

If Modis are so great, why would I step up to Bifrost or Gungnir?
Because you want something big enough to hold down the curling veneer on the fake-bark stereo rack you got on sale at K-Mart in 1979. Or because you want even higher performance. Or upgradability. Modis aren’t upgradable.

But I heard from an anonymous dude on the intarwebs all DACs sound the same! You’re bullshitting us!
If it’s your experience that all DACs sound the same, that’s cool. There’s a DAC in your iPhone or Android phone, so you can use that one and save some cash.
